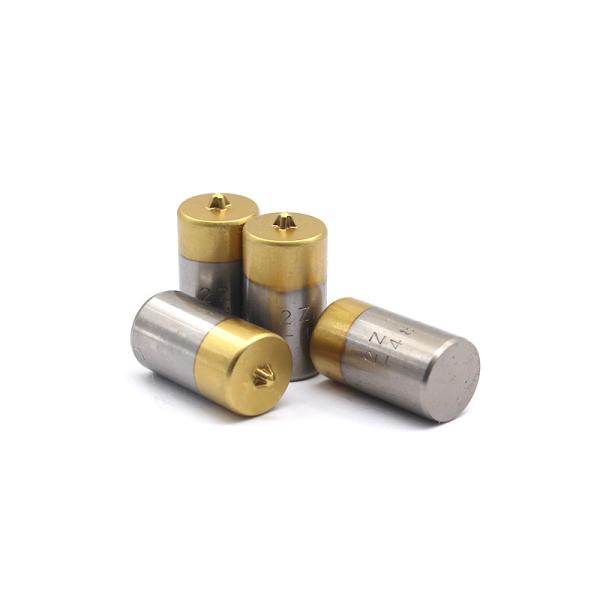

Natural / yellow Screw Header Punch 0.1mm-0.01mm Tolerance

Name: Natural yellow Screw Header Punch 01mm001mm Tolerance
Brand: Henghui
Price: 3.00 USD

Quality Natural / yellow Screw Header Punch 0.1mm-0.01mm Tolerance for sale

Place of Origin : Chongqing, China

Brand Name : Henghui

Model Number : OEM

Packaging Details : Carton Box; export standard package,or as client's requirement .

Supply Ability : 20000 Piece/Pieces per Month Punch head

MOQ : 30 pieces

Price : $3.00 - $15.00/pieces

Shaping Mode : Forging Mould

Product Material : Steel

Product : Punch head

Tolerance : 0.1mm-0.01mm

Machine type : punching machine

Material : M2,M35,M42

Surface : TIN, TiALN

Color : Natural, yellow

Size : 12/14/18/23*25

Surface treatment : Coating

Product Name : Screw Header Punch

Port : Chong Qing, Shang Hai, Shen Zhen or as client's requirement

Contact Now

Various Head Style Screw Head Professional Various Shapes Punches Header

Products Description

Natural / yellow Screw Header Punch 0.1mm-0.01mm Tolerance

Material:

M42(H59)＞M35(H55)＞M2(H9)

H9(M2)		H9(M2)
Chemical Composition	C	Si	Mn	P	S	Cr	Mo	V	W
Content (%)	0.85	0.33	0.34	0.027	0.005	4.12	4.73	1.78	5.74
	Cu	Ni
	0.12	0.24

M42(SKH59)		H9(M2)
Chemical Composition	C	Si	Mn	P	S	Cr	Mo	V	W
Content (%)	1.06	0.3	0.31	0.018	0.002	3.74	9.29	1.1	1.34
	Cu	Ni	Co
	0.07	0.29	7.97

Header punch standard:

JIS, ANSI, DIN, ISO, BS, GB, and NON-STANDARD .
The common head style:
Flat head, pan head , oval head , binding head , round head, truss head, button head, pf head, cheese head, fillister head and so on .
The common driver:
Phillips , Phillips and slot combination, slotted, hexagon, six-lobe (torx), six-lobe tamper , six-lobe/slot , pozidriv , square,
square/slot , Phillips/square, triangle and so on .

Surface Treatment:

Without coating,
With TIN coating-yellow coated,
With TILAN coating-black coated

Standard size	Weight
12x25mm	25g/pc
14x25mm	30g/pc
18x25mm	50g/pc
23x25mm	80g/pc

Process

Factory

About Us

Chongqing Henghui Precision Mold Co., Ltd. has CNC lathes, CNC machining centers, CNC Cylindrical Grinding Machine, CNC EDM machine, CNC Cutting Machine, Milling Andam Drilling Machine ,etc.We also have various types testing equipment,such as Rockwell Hardness Tester, Projector ,3D Image Measuring Instrument, etc. Henghui using high-quality tungsten carbide material and professional vacuum heat treatment.We design,manufacturing and supply high-quality precision molds for customers who engaged in cold heading and hot upsetting industries.About our molds , the relative standard deviation can be controlled within 0.005mm, concentricity can be controlled within 0.01mm. Strict accordance with ISO9001:2015 quality management system requirements of the operation,can ensure provide timely and high-quality service for our customers.Our products has exported to Southeast Asia,Europe and the United States ."Customer first, quality first, technology first, dedicated service" is our consistent operating principles.Warmly welcome to negotiate business with us.

Exhibition

Exhibition, German Fastener Exhibition, Indian Fastener exhibition and so on. We are committed to participating in various fastener screw exhibitions, and we have gained many new friends in the exhibitions. At the same time, we will visit our new and old customers offline. In each exhibition, we prepared various samples carefully and waited for the exhibition customers, who were satisfied with our products no matter in terms of design, price or quality.

Packing and Delivering

Packaging Details:Carton Box; Export Standard Package, Or As Client's Requirement.

Delivery Detail:According To The Quantity Of The Order, About 12-45 Days.

Inspection equipment

FAQ

Q1: How can I get a quotation from your company?

A1: Contact us.In order to quote you as soon as possible, we need the following information: drawings, Material , Quantity ,Surface treatment.

Q2: What is our lead time?

A2: This will be based on the number of products you customize and the country you are in.
